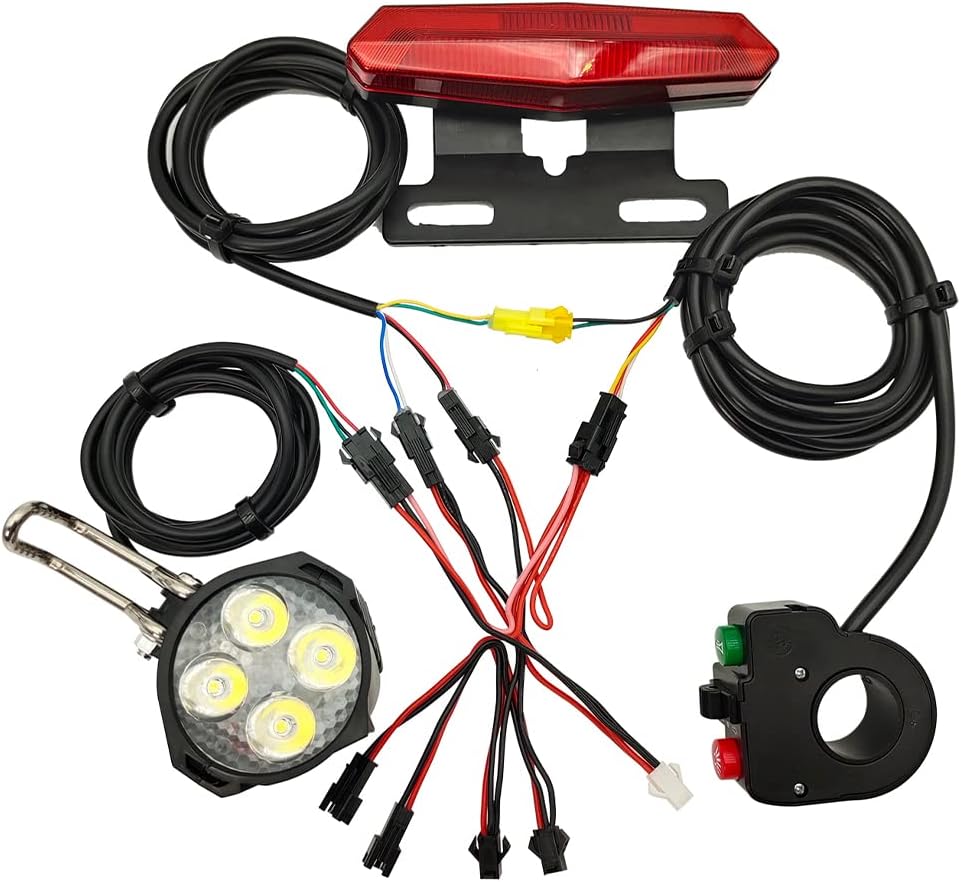

Electric Bike Front and Rear Light Set, 24V-60V, Built-in Horn Speaker, Turning Signal, Black

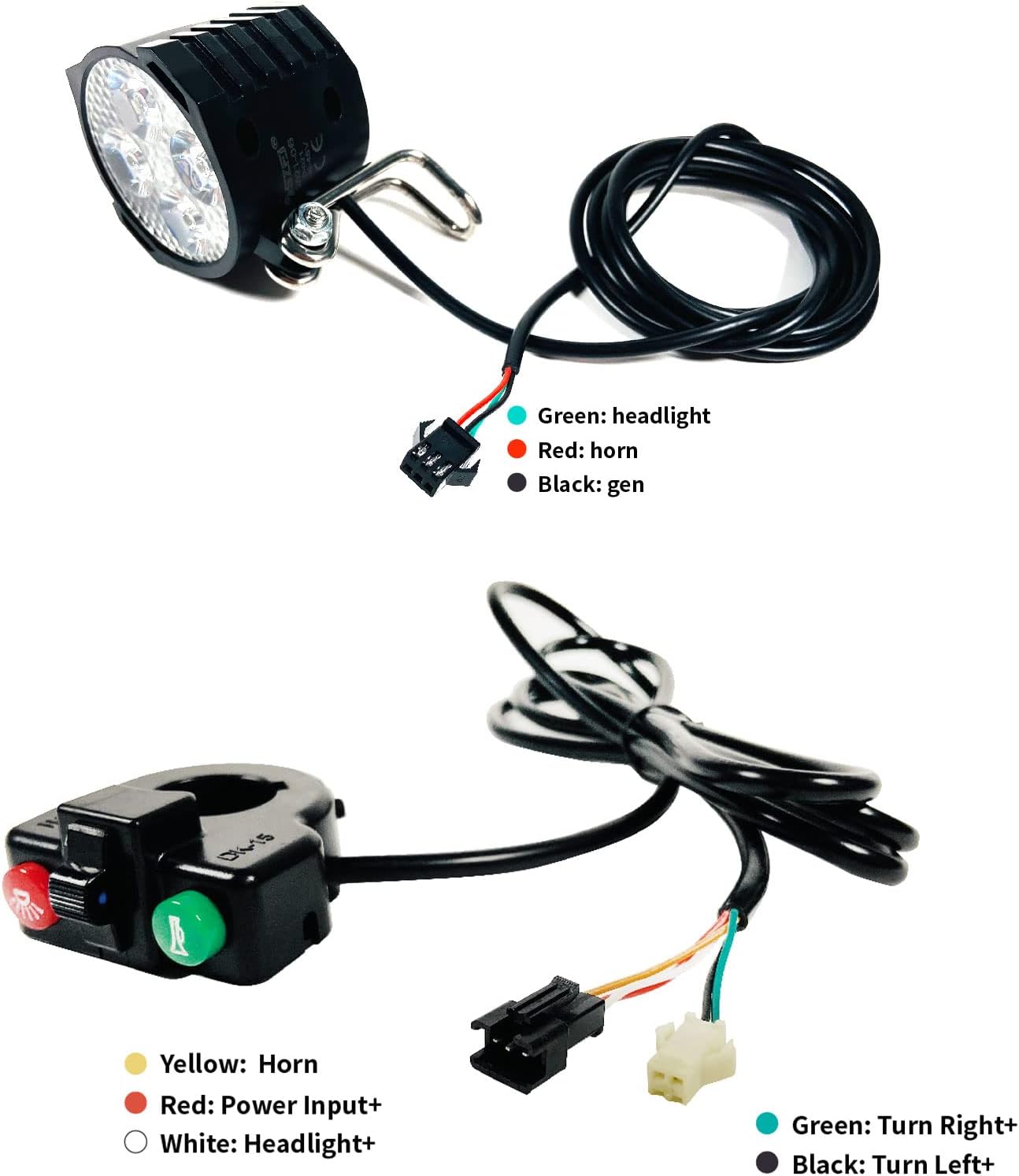

Application: Suitable for any ebike system with SM plug (Less than 60V) electric bicycles Function: Driving lights: When the switch of driving lights is turned on, the headlights and tail lights are onHorn: When the horn button is pressed, the horn starts to work, release it to cancel Brake light: When the brake signal line and the controller brake low voltage signal are connected normally, the brake light will light up while braking, and the brake light will go out when the brake is cancelled Turn signal: When the turn switch of the designated direction is toggled, the turn signal of the corresponding direction starts to work and flashes, the flashing frequency is about 800ms each time Front Light Parameters: Applicable voltage: 24V-60V Light Power: 12W Shell material: plastic Power:59mA/2.8W Luminous flux: 180-220LM Horn Power: 44mA/2.1WHorn Volume: 80-100dB Product size: 62*50*70mm Cable length: about 1.5M Taillight parameters: Net weight of taillight: 120g Shell material: plastic Applicable voltage range: 24-80V Power: 1.5W Number of light sources: 14 Luminous flux: 15LM Product size: 132*65*40mm Cable length: about 1.5M Switch parameters: *1. Net weight of switch: 92g *2. Shell material: plastic *3.Product size: 26*53*61mm *4.Cable length: about 1.5M*5. Wiring: -White: driving light output+ -Red: power input+ -Yellow: horn output+ Wiring of lamp group: *1. Net weight: 13 g *2. Size: 22AWG *3. Length: 140 mm(folded)Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
